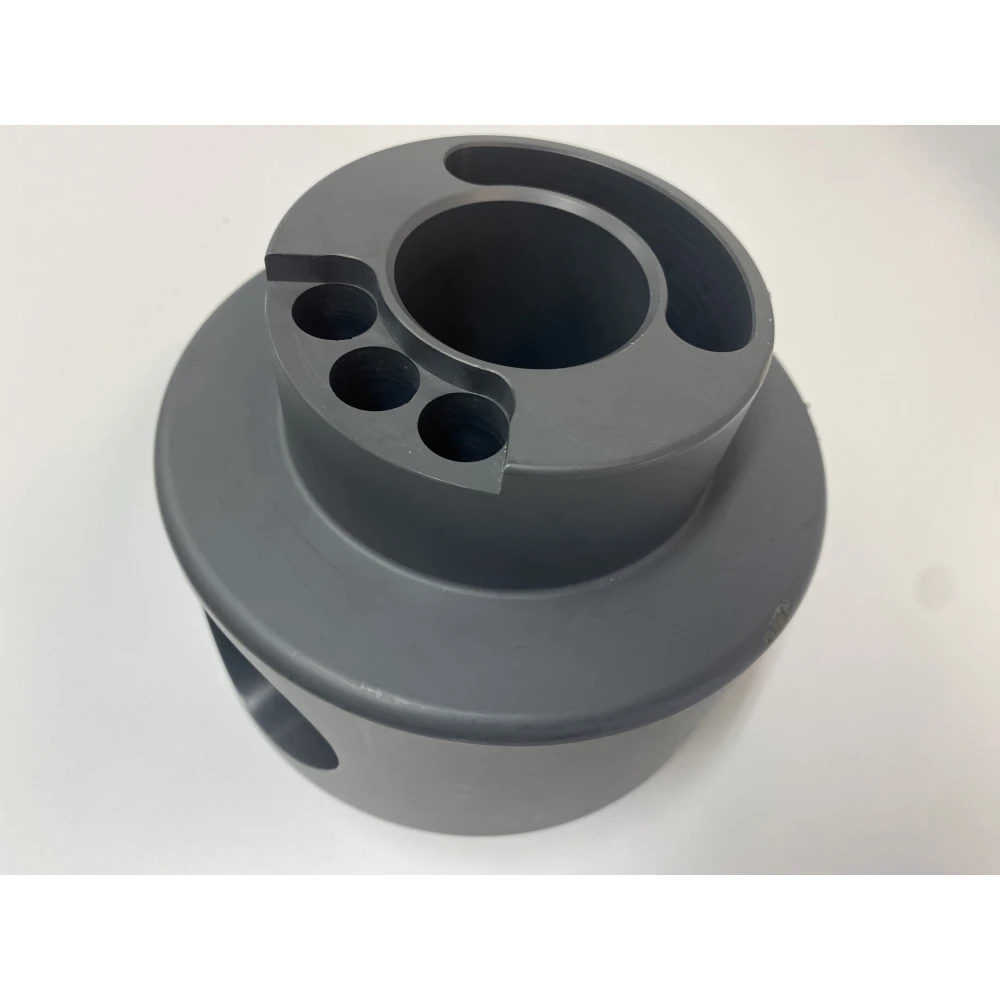

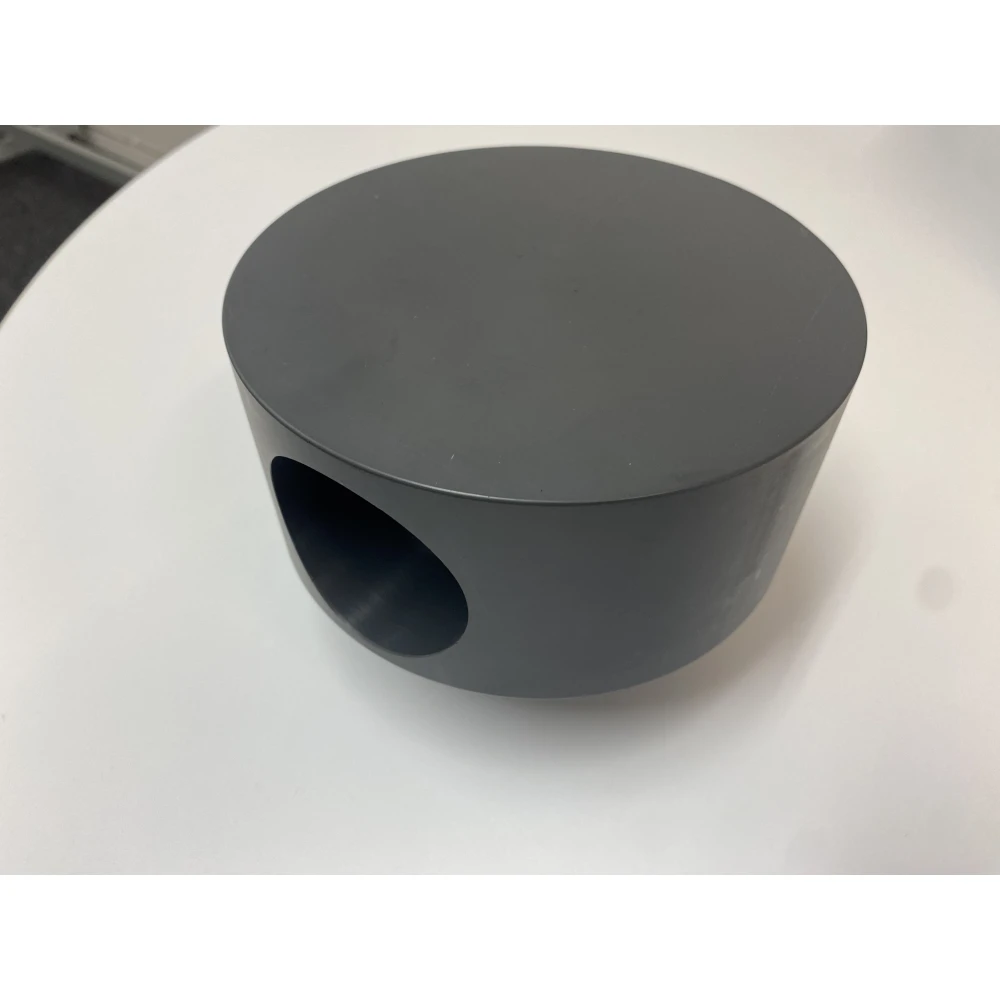

Resin loader tool for 4" top

Resin loader tool for 4 top
Resin loader tool for 4 top
Resin loader tool for 4 top
Resin loader tool for 4 top
Resin loader tool for 4" top

Resin & Media Loaders provide a simple, fast, and clean way to load a tank. They're designed to work with a vacuum hose. No gaskets are required for the use of these resin loaders. Two lengths of 2-1/2 inch O.D. vacuum hose and a vacuum are all that is required to operate the loaders. One hose is used to connect the loader to the vaccum, and the other hose is used to suck the media or resin through the loader and into the tank. Any media dust will be drawn into the vacuum, where it will be filtered out. Simple, Fast, Clean.

(Note: Vacuum, vacuum hose, tank, and media are NOT supplied with loaders.)


DIRECTIONS FOR USE
1.Place one hose in the inlet side of the loader.
(See diagram above.)
2.Place one hose in the outlet side of the loader.
(See diagram above.)
3.Attach outlet hose to the vacuum side of the vacuum.
4.Hold end of inlet hose in your hand.
5.Place the loader on top of tank over riser.
6.

Switch on vacuum and begin to load resin while moving the inlet hose in a back and forth motion allowing air to be drawn in with the resin.


IMPORTANT WARNINGS!
1.  Make sure the hose is not blocked at any time during loading.
2.  Do not force the end of the hose into a bag of media.
3.  Air needs to be drawn in with the media or your tank may implode.
4.  Do not allow unqualified individuals to operate or use the resin loader.
5.  Failure to correctly use the resin loader may result in catastrophic tank failure.
