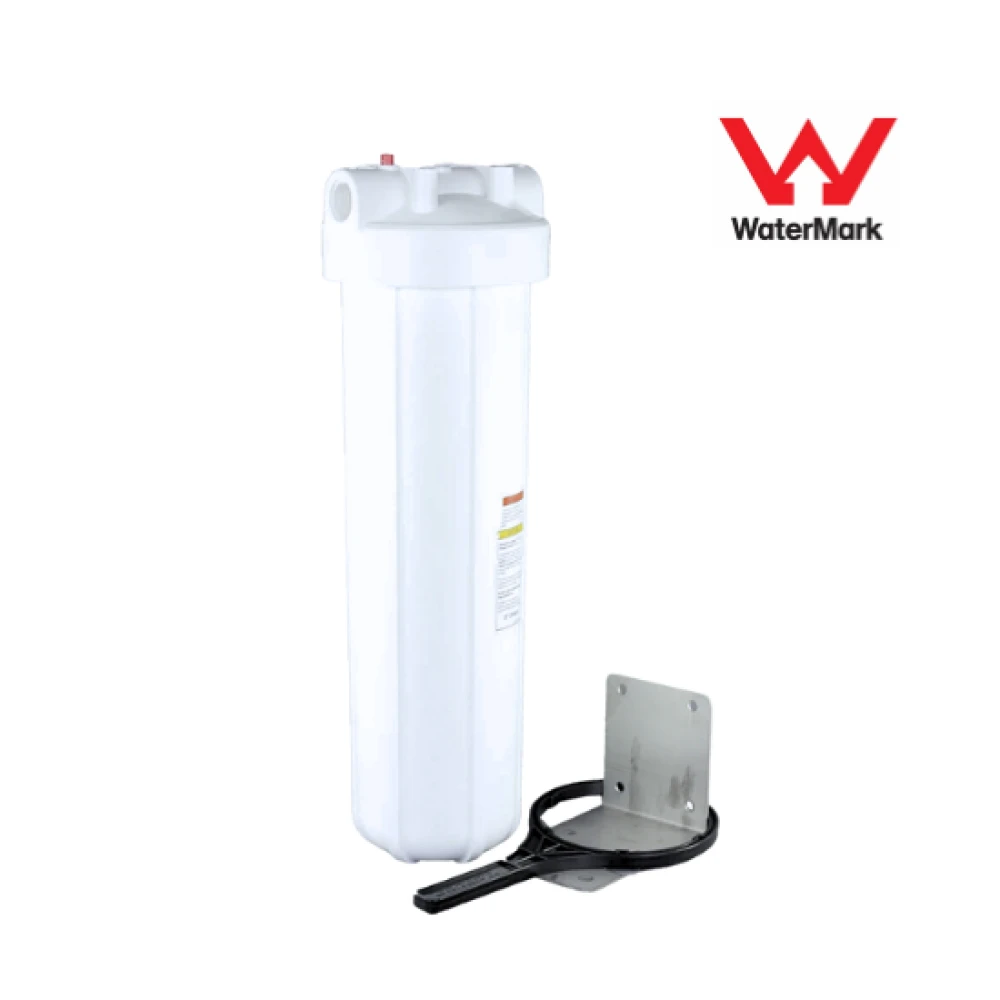

20" Big White Housing (S/Steel Bracket, Screws and Spanner), 1" or 1.5" ports

The Big White™ are manufactured with food grade reinforced polypropylene and offers large capacity filtration needs  for high-flow and heavy sediments applications.  All have pressure relief buttons.

• Pressure rating: 100 psi (6.9 bar)
• Temperature rating: 4.4-37.8°C (40-100°F)
• Maximum Flow Rate: 10": 150 LPM
• Standard port size is 1". If 1½ " (40mm) ported then housings improve maximum flow by 25%

It the pressure will at any time exceed the maximum rating then a pressure regulator must be installed before the filter housing (set at 75 PSI or less)

To prevent leaking, o-ring must be in good condition, properly lubricated and seated in the groove of the sump.

Do not over-tighten sumps; hand tighten only.

Product complies with Australian Watermark Certification.

This housing is suitable for filter sizing of 20” big/jumbo with 4½” diameter.
