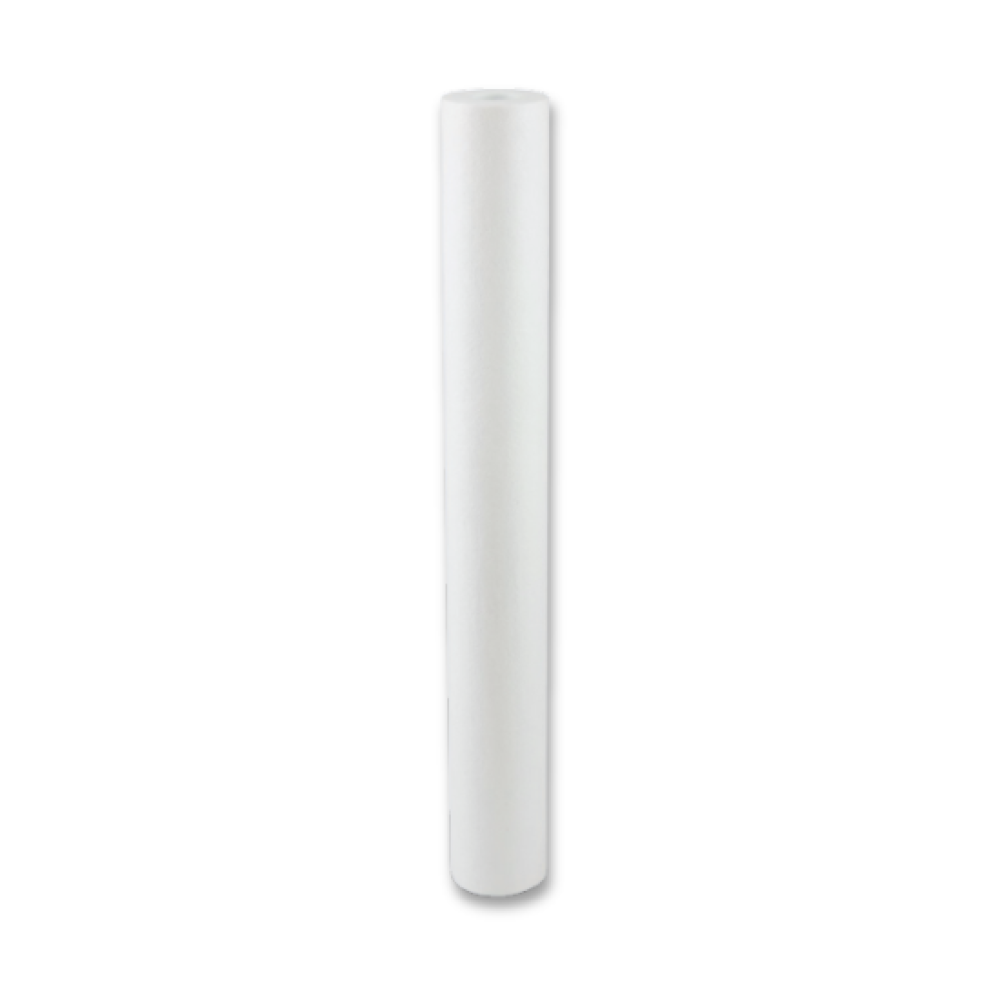

GE Purtrex PX05-20 Depth Sediment 5 Micron Filter Cartridge (2.5" x 20")

SPECIFICATION

• Part Number: 93047
• Dimension: 2.5” x 20”
• Nominal Rating: 5 micron
• Filtration Media: Polypropylene
• End caps and Adapters: Polypropylene
• Nominal Outside Diameter: 2.50 inch (6.4 cm)
• Nominal Inside Diameter: 1 inch (2.5 cm)
• Maximum Differential Pressure: 35psi (2.4bar) at ≤100°F (38°C)
• Maximum Temperature: 160°F (71°C) at ≤15psid (1.0bar)
• Recommended Maximum Water Flow: 5 gpm (19L/min) per 10-inch length

FEATURES & BENEFITS

• Long life
• Low pressure drop
• Superior dirt holding capacity
• High efficiency
• Consistent quality

TYPICAL APPLICATION

• Residential and commercial potable water filtration
• Chemical filtration - wide chemical compatibility
• Plating baths
• Amine Filtration
